Шасси Huawei MA5671

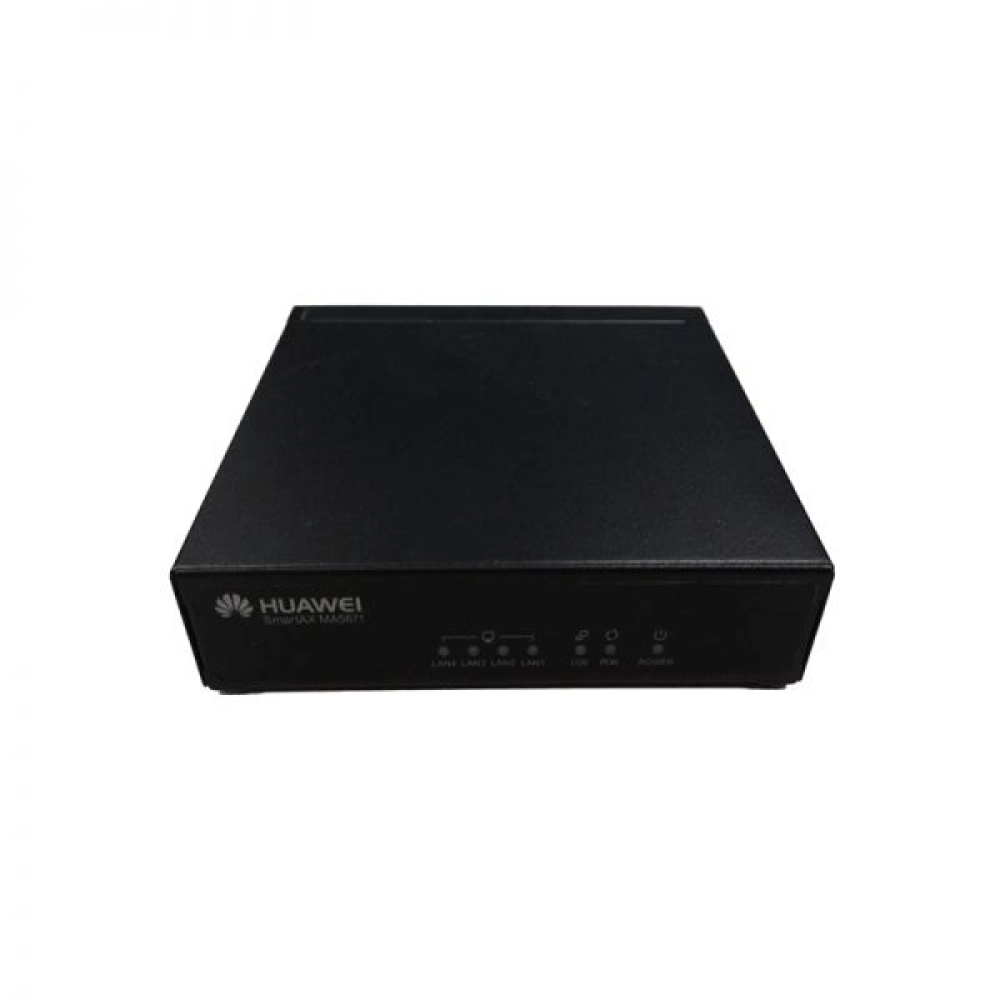

MA5671 is the Huawei SmartAX MA5671 1000M Ethernet Port ONU.

Product Details

The SmartAX MA5671 provides these interface parameters:

PON Port

• Port type: SC/UPC

• Transmission rate: GPON: downstream 2.488 Gbit/s, upstream 1.244 Gbit/s

• Bi-directional FEC

Electrical GE Port

• Port type: RJ-45

• Autonegotiation between 10/100/1000 Mbit/s

• Ethernet port-based VLAN tags and tag removal

• VLAN transparent transmission

• QinQ VLAN

• MAC address learning

The SmartAX MA5671 provides these production function:

Automatic Service Provisioning

• Authentication exemption

• Automatic electronic work order generating

Smart O&M

• OMCI/Web UI/TR069

• PPPoE/DHCP simulation testing

• ETH OAM

• Ring network detection

• Y.1731

• Public and private interworking for enterprise servers

Layer 3 Features

• PPPoE/Static IP/DHCP/DHCP Option66

• IPv6

• DDNS/DMZ/DNS/NAPT

• Static routes

• Multiple network segment addresses as well as routing and forwarding on service ports

• Port mapping/Port trigger

• ALG/UPnP/ARP

Layer 2 Management

• DHCP Option 82

• PITP

• BPDU transparent transmission

Multicast

• IGMPv2/IGMPv3 snooping

• IGMP proxy

• Dynamic controllable multicast

• MLDv1/MLDv2 snooping

QoS

• Ethernet port rate limitation

• 802.1p priority

• SP/WRR/SP+WRR

• Broadcast packet rate limitation

Security

• SPI firewall

• DoS anti-attacks

• Filtering based on MAC/IP/URL addresses

• Static MAC address binding
